Get the Most Out of Your Tesla — Install the Wall Connector
Licensed Tesla Wall Connector Installation in Edmonton — Up to 44 Miles of Range Per Hour

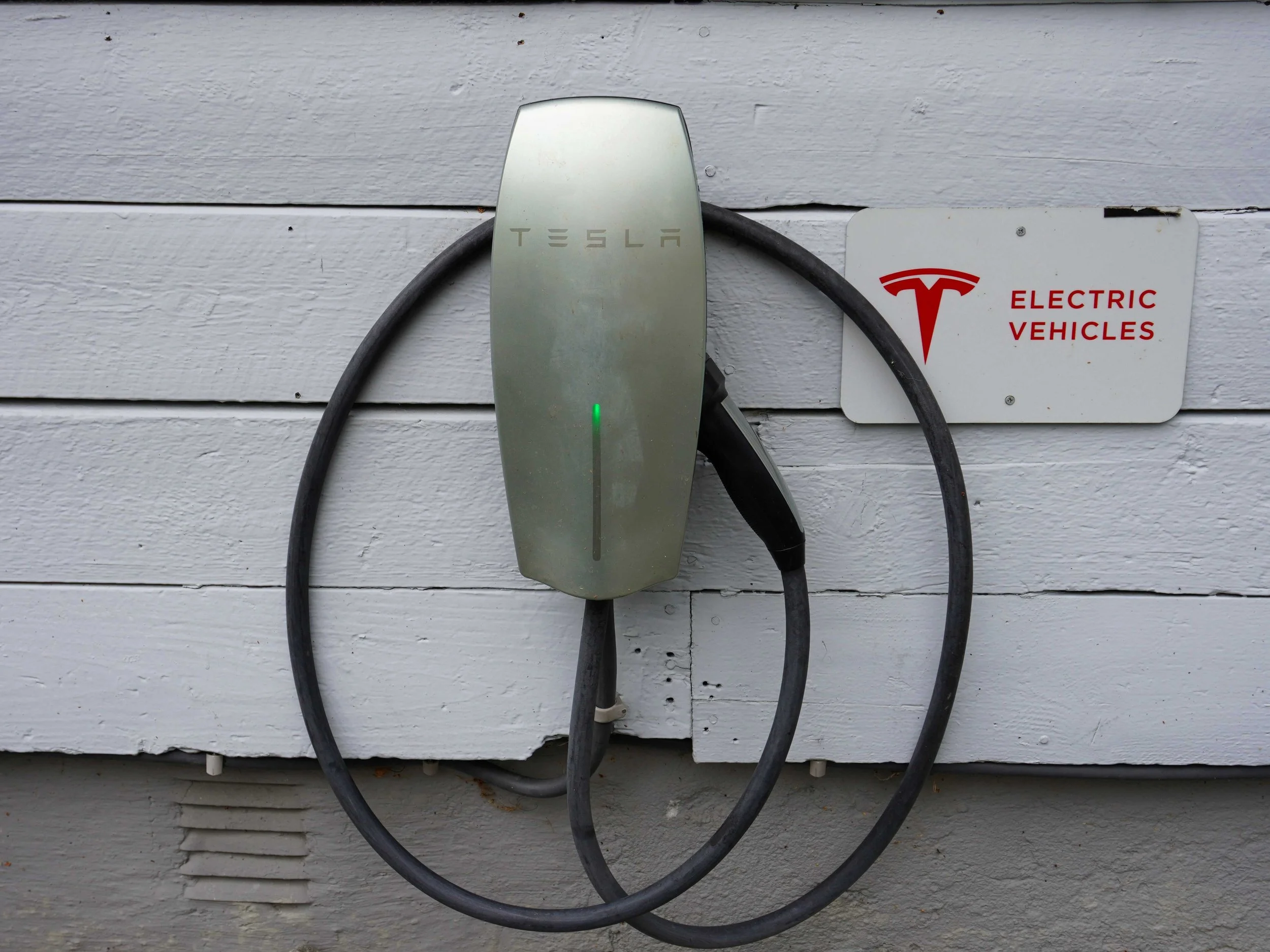

Tesla Wall Connector Installation Edmonton — Fast Home Charging for Your Tesla
The Tesla Wall Connector is Tesla’s recommended home charger, delivering up to 44 miles of range per hour on a 60-amp circuit — the fastest Level 2 charging available for Tesla vehicles. Armada Electrical installs Tesla Wall Connectors throughout Edmonton, handling the full process: electrical panel assessment, dedicated circuit installation, Wall Connector mounting and configuration, City of Edmonton permitting, and final inspection. If you’ve just taken delivery of a Tesla or have one on order, getting the Wall Connector installed means you’ll have fast, reliable charging at home from day one.
Tesla Wall Connector vs. Mobile Connector — Which Do You Need?
Every Tesla comes with a Mobile Connector — a portable charger that plugs into a standard 120-volt outlet (Level 1) or a NEMA 14-50 240-volt outlet. On a standard outlet, the Mobile Connector adds roughly 5 kilometres of range per hour. On a NEMA 14-50, it delivers about 30 miles of range per hour. The Tesla Wall Connector, installed on a dedicated 60-amp circuit, delivers up to 44 miles of range per hour — roughly 40% faster than the Mobile Connector on a NEMA 14-50.
For Tesla owners who drive daily and want a full charge overnight without worrying about charge speed, the Wall Connector is the practical choice. The Mobile Connector works as a backup or travel charger, but the Wall Connector is purpose-built for permanent home installation with features including Wi-Fi connectivity, power sharing for multiple Wall Connectors, and integration with the Tesla app for scheduling and monitoring.
Electrical Requirements for the Tesla Wall Connector
The Tesla Wall Connector requires a dedicated 240-volt circuit. Tesla recommends a 60-amp circuit breaker with 6-gauge copper wiring for maximum charging speed (48 amps continuous). On a 60-amp circuit, the Wall Connector delivers its full 11.5 kW output. It can also be configured for lower amperage circuits (as low as 15 amps) if panel capacity is limited, though charging speed decreases proportionally.
Armada assesses your Edmonton home’s electrical panel to determine available capacity. Most homes with 100-amp or 200-amp service can accommodate a 60-amp EV circuit. If your panel is near capacity, Armada can install a sub-panel or upgrade your main panel as part of the project. The Wall Connector is also compatible with power sharing — if you have two Teslas or plan to add a second in the future, two Wall Connectors can share a single circuit and automatically distribute power between vehicles.
How Armada Installs Your Tesla Wall Connector
1. Site assessment — We evaluate your panel capacity, the distance from the panel to your preferred mounting location in the garage, and any modifications needed (sub-panel, wire routing, wall prep).
2. Circuit installation — We install the dedicated 240-volt circuit with appropriately sized wiring and breaker. The circuit runs from your panel to the Wall Connector location.
3. Wall Connector mounting — The Wall Connector is mounted at the correct height and position for your Tesla’s charge port. Cable management keeps the charging cable organized and off the garage floor.
4. Configuration and testing — We configure the Wall Connector’s amperage setting to match your circuit, connect it to your Wi-Fi network, and test the full charging cycle with your vehicle.
5. Permit and inspection — Armada obtains the electrical permit and arranges the City of Edmonton inspection. You receive documentation confirming code-compliant installation.
Where to Mount Your Tesla Wall Connector
The optimal mounting position places the Wall Connector’s charging cable within easy reach of your Tesla’s charge port without stretching or draping cable over the vehicle. For most garage layouts, this means mounting the unit on the wall adjacent to the driver’s side rear quarter panel. The Wall Connector’s 24-foot cable provides flexibility, but positioning it correctly avoids cable wear and makes daily plugging in effortless. Armada considers your garage layout, parking position, and any obstacles during the assessment to recommend the best mounting location.
Tesla Wall Connector Compatibility
The current-generation Tesla Wall Connector (Gen 3) is compatible with all Tesla models: Model 3, Model Y, Model S, and Model X. It uses Tesla’s proprietary NACS connector, which is also being adopted by other manufacturers. The Wall Connector also supports non-Tesla EVs equipped with a NACS port or through a J1772 adapter, making it a practical choice even in households with mixed vehicle brands.
Frequently Asked Questions
-
Yes. The Tesla Wall Connector is purchased separately from Tesla’s online store. Armada installs the unit once you have it, or we can coordinate timing so the Wall Connector arrives before your scheduled installation date.
-
Yes. The Tesla Wall Connector is rated for indoor and outdoor installation (NEMA 3R equivalent). For outdoor installations in Edmonton, Armada ensures the mounting location, wiring, and connections are weatherproofed and rated for our climate conditions.
-
A standard installation takes 3 to 5 hours, including panel work, circuit installation, mounting, configuration, and testing. If a panel upgrade is needed, the project may take a full day. Armada provides a time estimate during the assessment.
-
For daily home charging, yes. The Wall Connector charges roughly 40% faster than the Mobile Connector on a NEMA 14-50 outlet, offers Wi-Fi connectivity and app integration, supports power sharing between two vehicles, and is designed for permanent installation. The Mobile Connector is better suited as a portable backup for travel.
Ready to install your Tesla Wall Connector?
Call (780) 484-6720 or book your assessment.
Armada Electrical installs Tesla Wall Connectors across Edmonton — dedicated circuit, permit, inspection, and full configuration included.
